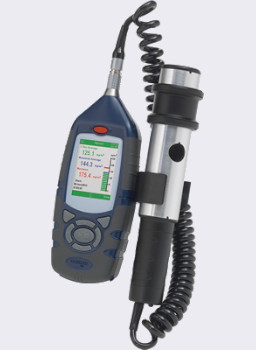

The CEL712 Microdust Pro provides real-time measurement and display of airborne dust, fumes and aerosols. This data logging meter is very quick and easy to use and, unlike most dust monitors, provides instant results.

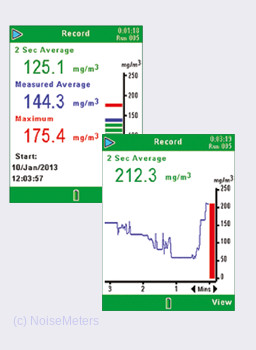

As the CEL712 is a real-time dust monitor, it is ideal for spot checks and walk-through surveys. You can instantly see where high dust levels exist. The dust levels can be displayed numerically or graphically.
The CEL712 is factory calibrated using methods traceable to isokinetic techniques, conducted in a wind tunnel using ISO12103-1 A2 fine dust (Arizona road dust equivalent).
Each probe is supplied with a unique Calibration Insert that creates a known optical scattering effect in the probe's sampling chamber. This fixed reference can be used to confirm the original factory calibration point.
|Measuring range||0.001 mg/m3 - 250,000 mg/m3|
|Zero stability||< 2 ug/m3|
|Batteries||3 x AA|
|Battery run time||Approx. 13 hours|
|External power||12VDC (via optional PC18 supply)|
|Logging interval||1 second to 60 minutes|
|Memory||86,000 data points (500 measurement runs)|
|Communication||Mini B USB|
|Analogue output||0 - 2.5 V DC FSD|
|Alarm output||Switched open drain < 15 V & 500 mA DC|
|Size (instrument)||172 x 72 x 33 mm (6.8 x 2.8 x 1.3")|
|Size (probe)||35 x 205 mm (1.4 x 8.1")|
|Weight||< 600 g including batteries (< 22 oz)|
|Operating temp||0 - 55°C|
