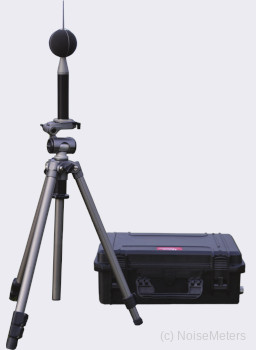

Outdoor Noise Kit with 1/3 Octave Band Filters

Outdoor Noise Kit
Outdoor Noise Kit
Outdoor Noise Kit Outdoor Noise Kit

Features

  • Easily relocated
  • Weatherproof case and outdoor microphone
  • Real-time 1/3 octave band filters
  • Up to 7 days unattended operation
  • Battery or external power

Applications

  • Environmental noise surveys
  • Tonal noise assessments
  • Construction and demolition sites
  • Factory and industrial site boundary noise
  • Road traffic and other transport noise
  • Wind farm noise survey

Ordering

WPK171B £5721.00
Outdoor noise measurement kit - Class 1 with 1/3 octave band filters
WPK172B £5006.00
Outdoor noise measurement kit - Class 2 with 1/3 octave band filters
WPK171B Outdoor noise measurement kit - Class 1 with 1/3 octave band filters
£5721.00
+VAT

Overview

The WPK Outdoor Noise Measurement Kits are designed for outdoor applications, where a meter needs to be left unattended in poor weather conditions to monitor for up to a week:

These noise measurement kits include a Sound Level Meter that was designed specifically for environmental noise measurement. The meter meets the sound level meter standards to Class 1 and makes all the measurements required by most such surveys, including the periodic LAeq and the statistical Ln parameters (L10, L90, etc).

Real-time 1/3 Octave Band Filters

This version of the outdoor kit (order codes WPK171B and WPK172B) include a version of the Optimus Green sound level meter with 1/3 octave band filters, making it ideal for measuring noise that may have a tonal content.

Our Recommendation

For most 1/3 octave band environmental noise surveys we recommend the WPK171B Outdoor Kit. This is a Class 1 meter with real-time filters, automatic timed measurements and audio recording.

For more details please see the Which Meter tab.

Tonal Noise to ISO 1996-2?

For measuring noise to the ISO 1996-2:2007 standard, there is a version of this kit fitted with the Tonal Noise Detection:

Applications

The sound level meter included in this kit is suitable for almost any noise measurement application, not just environmental noise, as it exceeds the requirements of most regulations such as those covering occupational noise. If you have additional applications as well as your environmental noise monitoring then these meters will usually be suitable for that too.

General Environmental Noise Survey

These kits are designed to be left unattended for up to seven days, making automatic and repeating measurements. For example, many surveys require repeating 15 minute measurements, providing parameters such as:

  • LAeq (A-weighted average sound level)
  • LAmax (maximum sound level, either Fast or Slow time weighted
  • LAmin (minimum sound level, either Fast or Slow time weighted)
  • Ln (statistical parameters or "percentiles", such as LA10 and LA90)
  • 1/3 octave band spectra

Construction and Demolition Site Noise

For medium term noise monitoring in and around sites during construction and demolition work. For longer term monitoring we recommend the EM2010 Environmental Noise Monitor. For monitoring over a few weeks or months the Outdoor Kit should be ideal. The kit can be set up at a suitable location and left to run for a week. At this point you can take it back to the office to download and recharge, or take a laptop out along with a recharged battery to swap (additional batteries are not included).

The noise measurements required on construction sites tend to include the periodic LAeq and LA90.

Boundary Noise Monitoring

For short term and mobile boundary noise monitoring, this application is very similar to Construction Noise (described above). Noise limits may be set by a local authority, demanding that noise levels be monitored 24 hours around a site, sometimes at multiple locations. The measurement of LAeq and LA90 is normally required.

Longer term monitoring at fixed locations can be achieved with the EM2010 Noise Monitoring.

Road Traffic, Transport and City Noise

The Outdoor Noise Kit can be easily relocated, making short term (up to one week) measurements at multiple locations much easier. Monitoring the noise at the roadside or by rail links or airports usually demands the measurement of the LAeq, LA90 and LA10, all of which are carried out simultaneously on the Optimus Green range of meters, as included with this kit.

Frequency Analysis for Tonal Noise

The meter in this kit includes real-time 1/3 octave band filters. Along with 1/3 octave band summaries, this meter also stores a time history of the spectra, giving the ability to analyse the noise for specific periods of time.

For more information about the measurements made please visit the Optimus Green with 1/3 Octave Band Filters page.

For automatic tonal analysis in line with the ISO 1996-2:2007, please see the WPK171C Outdoor Kit with Tonal Noise Detection.

The Meter in this Kit

All the WPK17xx outdoor kits come with an Optimus Green Sound Level Meter. The WPK kits on this page include either the CR171B Class 1 meter or the CR172B Class 2. Most applications demand the Class 1.

This meter includes the following features:

  • Environmental noise parameters (Leq, Ln, Lmin, Lmax)
  • Real-time 1/3 octave band filters
  • Automatic timers
  • Audio recording
  • Single measurement span 20 to 140 dB

You can read more about the meter itself on the Optimus Green with 1/3 octave band filters page.

No Tonal Noise?

If your application does not require checks for tonal noise then you probably don't need the 1/3 octave band filters. These filters split the spectrum up into 30 or more bands, giving a nice visual display of the frequency content and the ability to [analyse,us:analyze] the noise in more detail.

If you don't need these filters then please see the Standard Outdoor Kit option. You can always add filters at a later date if needed.

Tonal Noise to ISO 1996-2:2007

While this meter makes all the measurements needed for a tonal noise analysis to ISO 1996-2:2007, you may find it easier and quicker to have a meter with the Tonal Noise Detection module fitted. This uses the 1/3 octave band filters to automatically carry out the calculations in line with ISO 1996-2:2007, or with a customer method.

For automatic tonal analysis please see the Outdoor Kit with Tonal Analysis page.

Environmental Noise Measurements

Most environmental noise surveys require the following parameters, or a subset of these:

  • LAeq - The A-weighted average sound level
  • LAmax - The maximum A weighted sound level (Fast or Slow)
  • LA90 - The sound level exceeded for 90% of the time (background noise)
  • LA10 - The sound level exceeded for 10% of the time

Monitoring noise with a tonal content may also require measurements using 1/3 octave band filters, which are included with this kit.

Some applications need measurements of these acoustic parameters over curfew periods, so for example between 11pm at night and 7am in the morning.

The meters we recommend for use with the Outdoor Kit include all these parameters, and many more.

Timers and Periodic Measurements

Automatic, repeating timers can be configured to make measurements over preset or custom periods. These would usually be set to 5 minutes, 15 minutes or 1 hour for environmental measurements. Timers are included with this meter.

Noise Profile

As well as the periodic summary measurements the meter also stores a time history noise profile. This can provide a graph of sound level over time and is a good way to pick out noisy periods.

The meter in this kit also stores a time history of the 1/3 octave band spectrum for further analysis or the production of charts.

The meter can be set to store time history samples at a rate of 1/100s to 2s.

Once downloaded to the software (which is included) you can plot graphs of the sound level over time and recalculate certain noise parameters.

Voice Notes and Audio Recording

Before starting a measurement you can record VoiceTag audio notes, which in some environments is easier than writing things down. These are stored on the meter and can be listened to after downloading the measurements.

The meter is also capable of recording the audio during measurement. These recordings can be threshold triggered based on the sound level, making it much easier to identify the cause of high noise levels when the monitor has been left unattended.

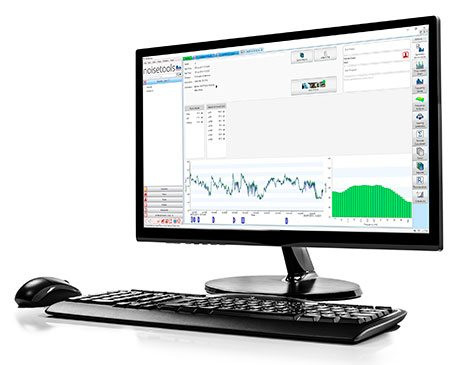

Environmental Noise Software

The outdoor noise kit includes the NoiseTools software - there is no extra charge for this. You can download the software to evaluate it before making a purchase.

NoiseTools Software

The NoiseTools software runs on a Windows PC. It is compatible with all recent versions of Windows, from Windows 7 onwards.

  • Downloads measurements from the Optimus Sound Level Meter
  • Produce noise reports, including custom environmental noise reports
  • Print or export reports for sharing
  • Listen to Voice Tags and audio recordings
  • Produce charts and tables of 1/3 octave band measurements
  • Link measurements to projects, people and places
  • Free, lifetime updates
  • Licence free with no installation restrictions
noisetools software for optimus sound level meter
NoiseTools Software

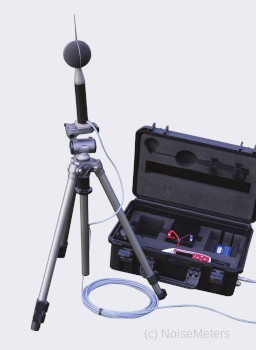

Outdoor Kit Contents

The WPK171B and WPK172B outdoor kits include the following items:

Options

The main option with this kit is whether to have Class 1 or Class 2. A Class 1 meter is more accurate than Class 2, as defined by the various sound level meter standards such as IEC 61672 and ANSI S1.4.

Most environmental standards suggest the use of a Class 1 meter. Class 1 meters are also often provided with a more sensitive microphone capsule that is better for use in low noise environments.

Noise MeasurementsSee Optimus Green Specifications
ConnectorsMicrophone input from MK:172 Outdoor Microphone
External Power Connector
External power12-18v DC

Dimensions465 x 180 x 355 mm
Weight14.1 kg / 31 lbs including:
2 x batteries, charger & outdoor microphone
