The delivery price is calculated during checkout based on your location and the goods ordered. Our basic delivery prices are:
Delivery within United Kingdom: £12.00 +VAT
Delivery Service: Next working day*
* For products that are in stock and the order received by midday.
Some products go through a final configuration and calibration before being shipped. If the calibration labs are busy this can add up to two days on to the delivery schedule but guarantees a fresh calibration.
The Integrating Combination Kit is ideal for applications with highly mobile workers and for stationary applications too. The doseBadges are ideal when monitoring workers who move around between many different noisy locations, or who are in areas where measurements with a sound level meter is difficult or unsafe.
The CR162B Integrating Sound Level Meter can be used to carry out a full and detailed assessment. A hand-held meter such as this is also convenient for assessing situations where workers are relatively stationary.
The doseBadge Noise Dosimeters included in this kit are the Professional version so they include data logging, detailed Time History and real-time Octave Band Filters. You can leave them unattended on the worker and download the measurements at the end of the working shift. The time history can be used to create graphical reports that clearly show the noisier times of day.
The CR162B is a data logging, integrating sound level meter, storing the cumulative values such as Leq, Peak, etc. It also stores a time history of the sound levels.
The Integrating Combination Kit includes the following:
Everything needed for a full noise at work survey is included with this noise kit. The sound level meter meets all the UK and EU requirements for a detailed and complete noise survey. The dosimeters also meet the requirements of the noise at work regulations. The result is the ability to make either a full manual survey or a full noise dosimetry based assessment.
The Integrating Combination Kit is for noise at work surveys and worker noise exposure assessments. A full noise risk assessment can be carried out using either the noise dosimeters or the hand held sound level meter, but there are benefits of using one over the other depending on the environment and type of noise measurements being made.
The hand-held meter is also suitable for other applications, which you can read about on the Optimus Industrial Sound Level Meter page.
For other meters and factory noise monitors please visit our Occupational Noise page.
The noise dosimeter(s) included in this kit measure a worker's noise exposure or noise dose throughout the work shift. Rather than measuring at each location or following the worker round and then calculating the exposure, the doseBadge does that for you.
The sound level meter in this kit can be used for making spot checks at positions of interest. These spot checks can then be used to calculate a worker's noise exposure.

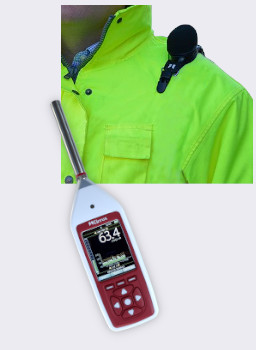

The doseBadge Pro is a small noise dosimeter that mounts on the worker's shoulder in order to measure noise exposure throughout the working shift - the LEP,d. It is fully self-contained, with rechargeable battery and microphone built in.
The noise dosimeter is fixed to the worker's clothing or overalls using the clips provided. Once running it continuously measures the sound levels, recording the levels every second and calculating the total noise exposure in line with the noise at work regulations.
This is the Pro version of the doseBadge, so it includes extra functionality such as octave band filters, multiple channels and fast charge time. It is suitable for use in all international occupational noise regulations in case you need to use it in different regions.
This Combination Kit includes the CR162B Optimus Industrial Sound Level Meter. This is a Class 2 Integrating sound level meter, so it is suitable for carrying out a full noise at work survey in its own right. If you only need a hand-held meter and not the noise dosimeters then this meter can be bought on its own on the Optimus Industrial page.
While the doseBadge has a very specific application - measuring a worker's noise exposure - this Optimus Industrial sound level meter can be used for many other noise applications. It is suitable for checking office noise and alarm levels.
If you need to measure occupational noise and environmental noise then the Environmental and Occupational Combination Kit may be a better option as it includes a Class 1 sound level meter with extra environmental noise measurement parameters.

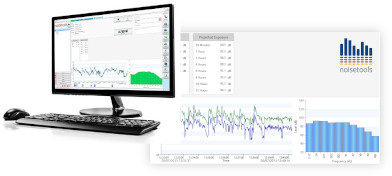

The CMB162B/x Combination Kits include the NoiseTools software, which provides the following functions:
There is no extra charge for the NoiseTools software and it can be installed on multiple computers without the need for extra licences. You can read more about this software's features and the meters it supports on the NoiseTools Software page.
An application for mobile phones or tablets can be used to control the doseBadge Pro and view ongoing noise measurements. This app is also free of charge.
| Standards | IEC 61252 Personal Sound Exposure Meters |
| ANSI S1.25 Personal Noise Dosimeters | |
| Range | RMS: 60 to 140 dB(A), Peak: 80 to 143 dB |
| Octave Bands | Real-time, 63Hz to 8kHz |
| Parameters | Date/time, Leq, Lavg, TWA, LEP,d, Lex,8, %Dose, Peak |
| Communication | Bluetooth to mobile app, USB to computer |
| Programmable | Exchange rate, criterion level & time, Threshold, Time Weighting |
| Logging | 1 second or 1 minute time history (user selectable) |
| Dimensions | 66 x 43 x 53mm, 2.54" x 1.69" x 2.01" |
For more detailed specifications please visit the doseBadge Pro Noise Dosimeter page.
| Standards | IEC 61672 Class 2 |
| ANSI S1.4 Type 2 | |
| Range | 20 to 140 dB |
| Freq. Weighting | A, C and Z |
| Time Weighting | Fast, Slow and Impulse |
| Time History | 10ms, 62.5ms, 100ms, 125ms, 250ms, 1/2 sec, 1 sec or 2 sec |
| Config | Exchange rate, threshold, criterion level and time |
| Memory | 8 GB |
| Power | 4 x AA batteries |
For more detailed specifications please visit the CR162B Sound Level Meter page.
